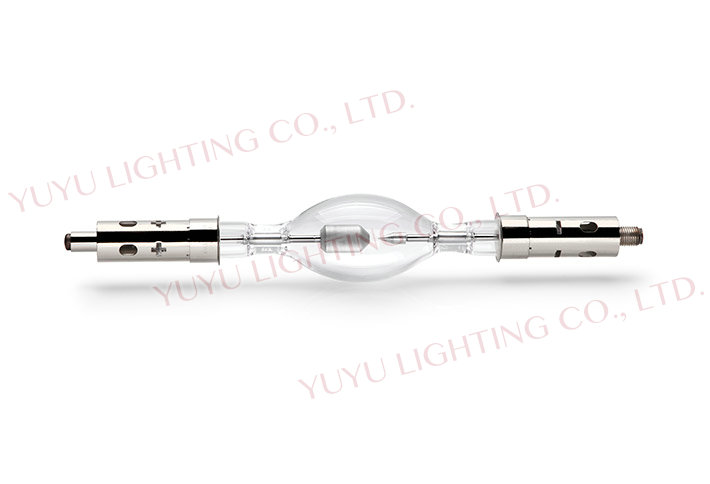

CHRISTIE 3kw DTP

No.

Item

Standard request

1

Overall length L1

334 mm

2

Lamp length  L2

282 mm

3

Bulb diameter  D

53 mm

4

LCL    A

125 mm

5

Lamp voltage

31 V

6

Lamp current

100 A

7

Luminous flux

145000 lm

8

Average life

1000 h

9

Appearance

No devitrification and nigrescence in bulb；smooth spot welding；clear mark.

10

Lamp base

Cathode: SFc30-14
Anode: Sfa30-14
Bonded firmly in the role of the torsion torque 1N.M no loosening of the phenomenon

11

Axiality error

≤4.5

12

Start-up

Lamp can be able to start in 2s

13

Impulse discharge current

Lamp can withstand 110% rated current to maintain 1min without damaging

14

Iliumination intensity

Per unit area of the received flux

15

Cooling requirements

forced cooling / fan
Min. air flow velocity around discharge vessel : 10m/s
